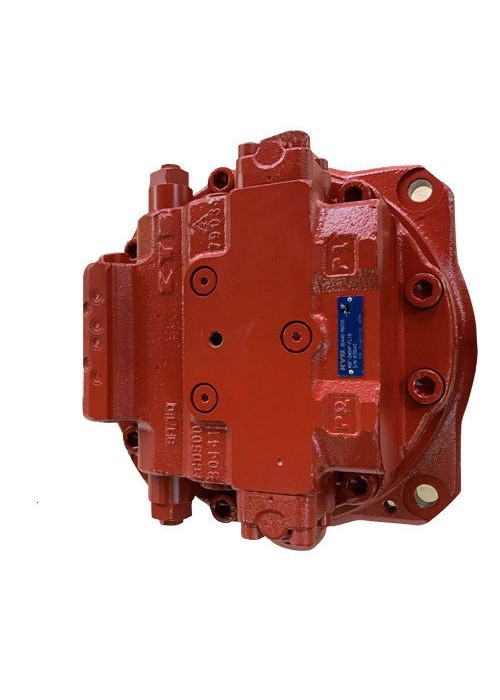

Kobelco PY15V00006F1 Hydraulic Final Drive Motor
| Brand Name |
Kobelco |
| Model Number |
PY15V00006F1 |
| Min.Order Quantity |
1 pcs |
| Price |
Negotiable |
Product Features
Kobelco PY15V00006F1 bearing Size Chart (mm/inches) |
|---|
| Cone Part Number | EE117067 |
| Design Units | Imperial |
| Cage Type | Pin-Type |
| C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)1 | 518000 lbf |
| C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)2 | 134000 lbf |
| d | 6.7500 in |
| B - Cone Width | 3.1250 in |
| R - Cone Backface To Clear Radius3 | 0.25 in |
| da - Cone Frontface Backing Diameter | 8.07 in |
| db - Cone Backface Backing Diameter | 8.46 in |
| Ab - Cage-Cone Frontface Clearance | 0.44 in |
| Aa - Cage-Cone Backface Clearance | 0.57 in |
| a - Effective Center Location4 | 0.48 in |
| C90 - Dynamic Radial Rating (90 million revolutions)5 | 77200 lbf |
| C1 - Dynamic Radial Rating (1 million revolutions)6 | 298000 lbf |
| C0 - Static Radial Rating | 314000 lbf |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)7 | 93300 lbf |
| K - Factor8 | 0.83 |
| G1 - Heat Generation Factor (Roller-Raceway) | 658.9 |
| G2 - Heat Generation Factor (Rib-Roller End) | 65 |
| Cg - Geometry Factor | 0.143 |
